How to create HDMI cabling?
I have a question about my HDMI wiring and wanted to know if this is as possible as I imagine.
It concerns the following devices: PC, XBox, TV and PC screen.
Now I would like a cabling, with which I transfer my image of the XBox, as needed, on TV or PC screen, the same applies to the PC.

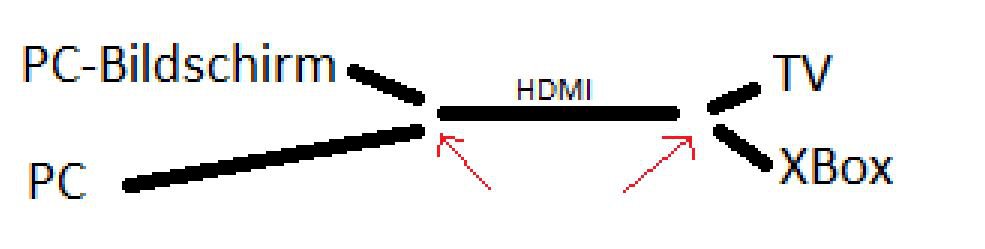

In the optimal case, it should be wired like this:
Is there a device, which are installed at the red arrows, so that only a long HDMI cable must be used?
But if you want to run both at the same time, it either does not work at all or with performance loss.
https://www.digitec.ch/de/s1/product/manhattan-1080p-4x2-hdmi-matrix-switchsplitter-matrix-mit-4x-eingang-2x-ausgang-videobandbreite-vers-10185471
that is in one device, 4 inputs, 2 outputs. I have not found it available. Basically, you can also obstruct two such HDMI splitter.
Once 2x in 1x out and once in 1x and 2x out
The device that recommended Orothred23 looks good.
Servi Andi,
Thank you for your prompt reply.
However, I'm not 100% sure if this is how I imagine.
In my opinion I would need four of the switches in my scenario, please correct me if I'm wrong.
Here is a picture:
.html
The purpose of the wiring is as follows:
Xbox / TV and PC / PC screen are about 5 meters apart, so I just want to use a long HDMI cable.
Unfortunately I can't watch the picture, the page is locked in the office…
Anyway, according to your drawing above that should work.
You make with the first splitter the xBox and the PC on a cable. Then you have a cable from splitter to splitter. The second splitter then splits again on TV / monitor. So you can gamble on your mood on the monitor xBox or connect the PC to the TV. Order completely reversed. Up to you.
